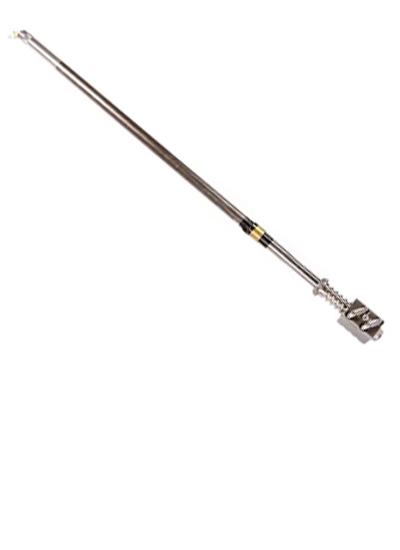

896487 Ball Nut & Shaft Assembly

$326.00

896487 Ball Nut Shaft Assembly

Only 2 left in stock

SKU: 896487 Category:

Description

896487 Ball Nut & Shaft Assembly

896487 Ball nut and shaft assembly for Clark 1614420 manual gears

Fits many Clark C500 (H)Y685 models.

896487 has the following specifications:

  • Overall length 37-3/8″ with right hand worm thread lead.
  • C-C rotation (clock to clock), i.e., you turn the hand-wheel Clockwise, the Pitman shaft also turns in a Clockwise direction.
  • The input shaft is 7/8″ diameter with 36 splines, and hollow.

For an exploded view of this gear and part # reference click here.

For a small parts repair kit for this gear, see product # RK200.
