Description

This 112-1305-006 hydraulic torque motor is a surplus item and there is only one available at this discount price.

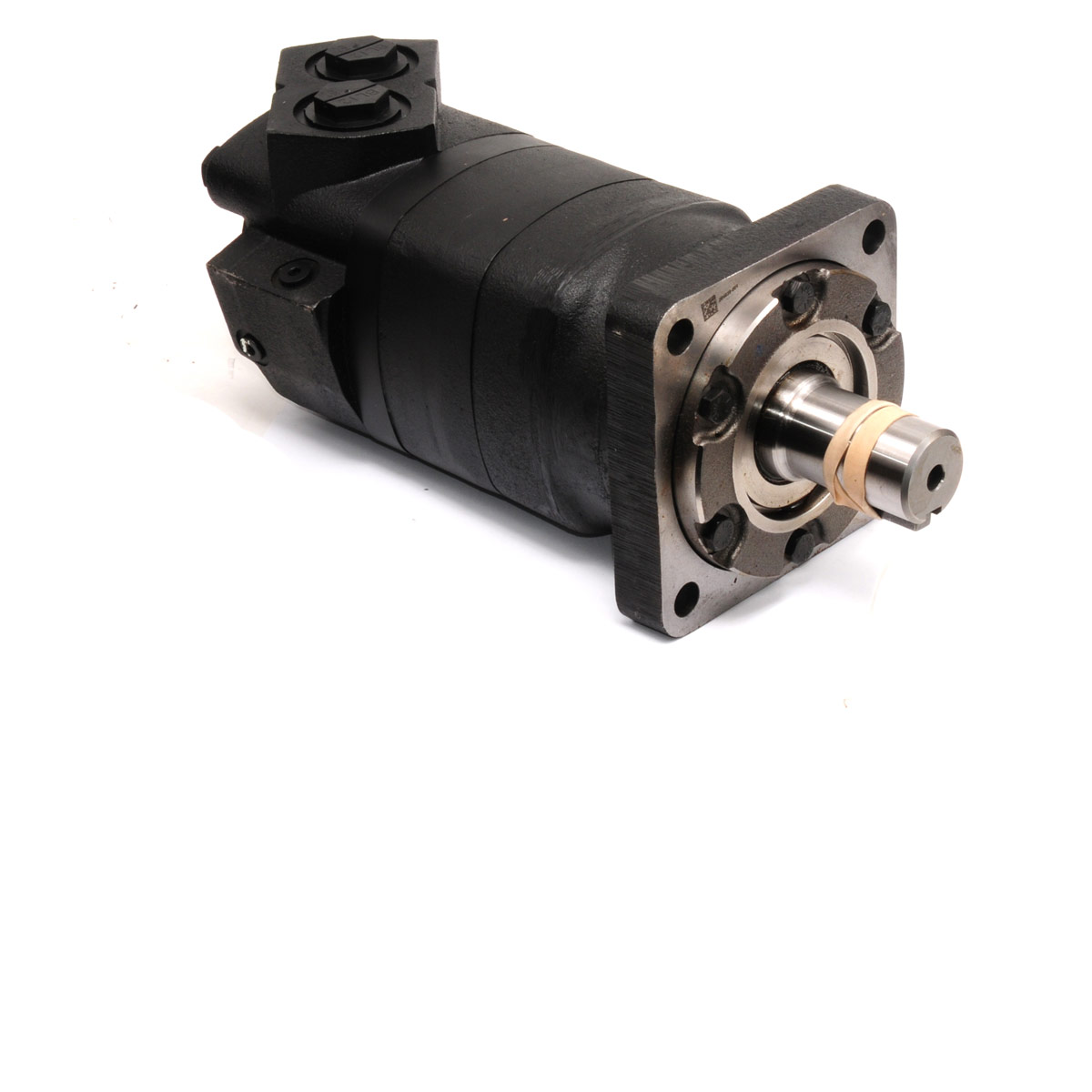

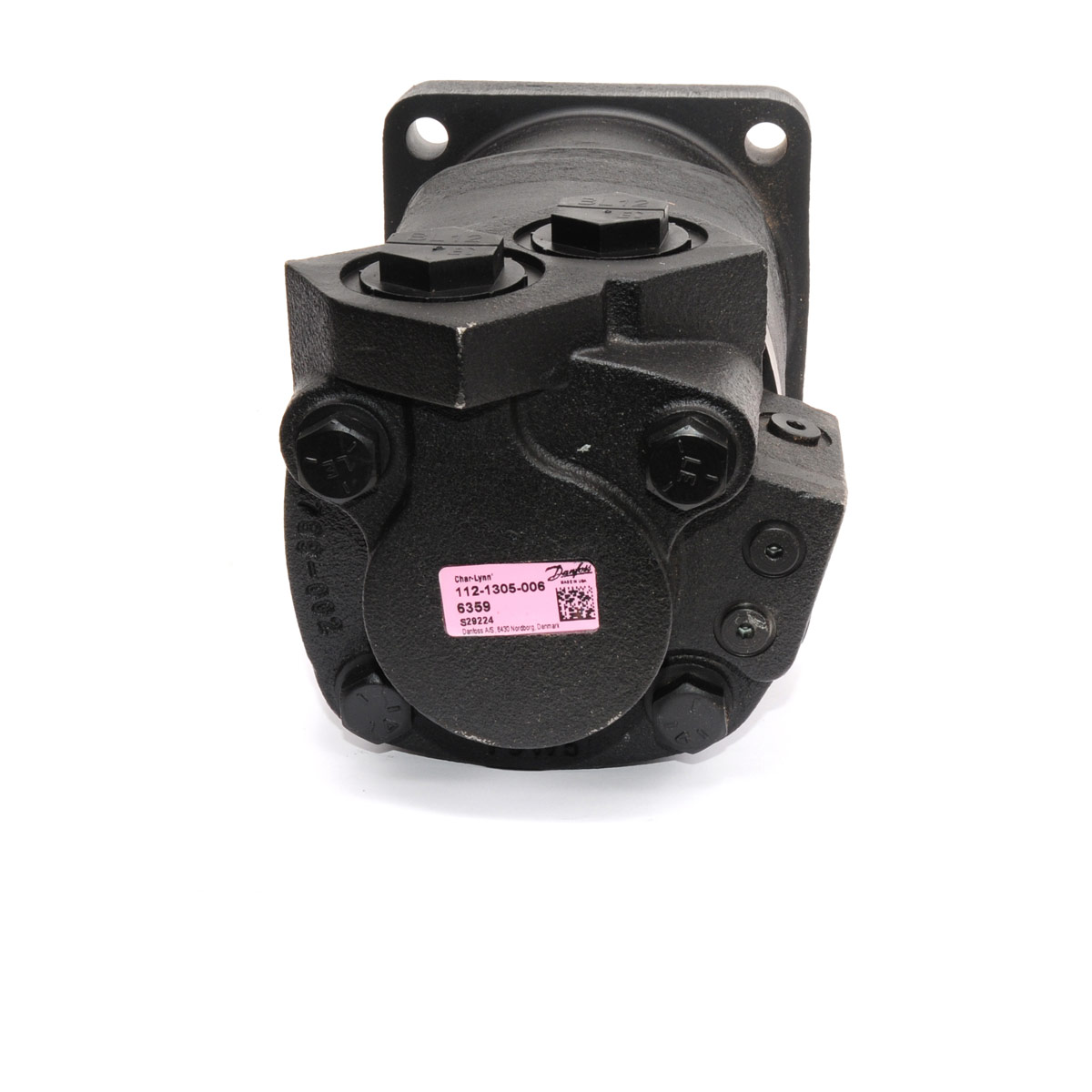

The actual 112-1305-006 hydraulic torque motor available is pictured.  If you have a motor with a different design code (the last 3 digits on the end of the part number) it will replace it as an assembly as long as the first seven numbers are the same.  Please note that all surplus items may have some imperfections in the paint or small scuffs and scratches, or other signs of light shelf wear. Guaranteed to be new, unused, and to operate correctly when proper start up procedures are followed.

It has the following specifications:

• Eaton Char Lynn 6000 Series (Danfoss)
• 30 cubic inch / 491.4cc displacement
• 1 1/2″ Straight Shaft with key
• Staggered 1 5/16″ -12 O’Ring ports, Case Drain 7/16″-20 O’Ring
• Standard 4 bolt Flange Mount 5.00″ pilot
• 40 GPM Max. Continuous oil Flow
• Torque 12789 inch pound
• M06300AB01AA0200000000000AA00F
