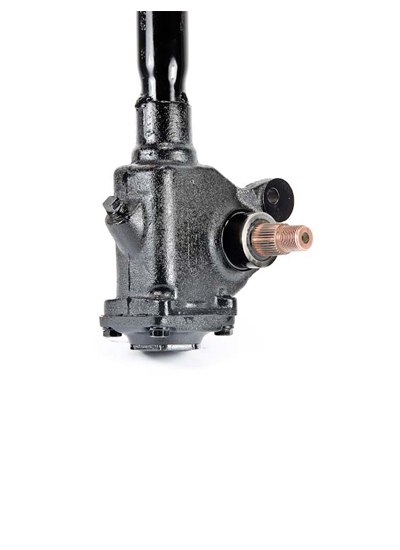

664877-lower-view
664877 with notes

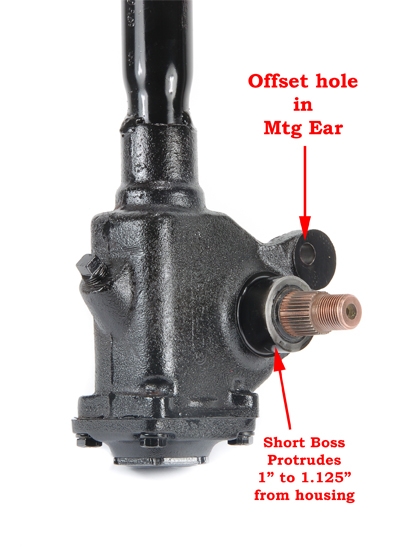

Clark 664877 Lower View With Application Notes

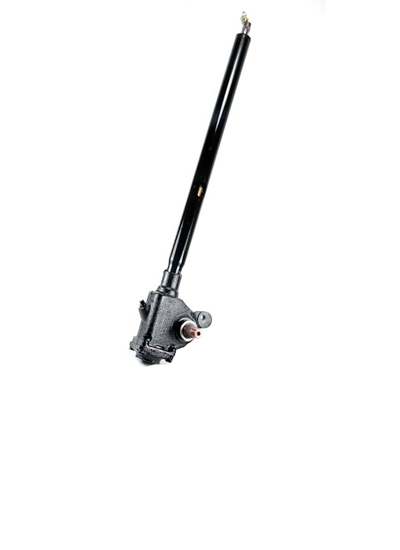

664877 – Manual Steering Gear – Reconditioned

$1,200.00

664877 – Manual Steering Gear

Reconditioned

Fits Clark; C(F)30-50(B)

Out of stock

SKU: 664877 Category:

Description

664877 – Manual Steering Gear – Reconditioned

SELL PRICE SHOWN INCLUDES A $400.00 CORE CHARGE DEPOSIT, WHICH IS REFUNDABLE UPON RETURN OF YOUR OLD ASSEMBLY. Please see our hassle free core policy for details concerning condition of cores for full credit.

This Clark 664877 manual steering gear is fully reconditioned and comes with a one year warranty. Unless you are sure you need this part #, please contact us with your model and s/n to help you determine if this is the correct gear for your machine.

This gear has a housing casting # of 267283 and fits the following Clark forklift models:

C(F)30-50(B)

PLEASE NOTE this gear looks like many other Saginaw Manual steering gears. It is a good idea to verify specifications, to ensure you are ordering the correct gear.  Please check the model info above.  And look at all pictures provided
Also verify the following specifications:

  • The 664877 Is a C-C rotation gear, (Clock to Clock), i.e., you turn the hand-wheel Clockwise, the Pitman shaft also turns in a Clockwise direction.
  • The Input shaft is 7/8″ diameter with 36 splines.  Input Shaft is hollow.

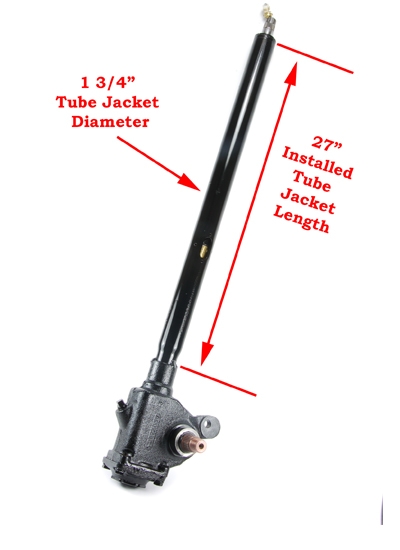

  • The outer tube jacket is 1.75″ diameter, and is pressed into the lower housing.
  • The tube jacket has an installed length of 27″.
  • Has a cast number of 267283 on the housing
  • The Pitman shaft boss is 1.00″ to 1.25″ in length

For an exploded view of this gear and part # reference click here.

For a small parts repair kit for this gear, see product # RK200.
